Doors & Hatches • Airplane General

SYS

ConditionCondition

Plan des portes, trappes et accès service du 737 — situer FWD/AFT CARGO, EQUIP, ENTRY/SERVICE, E&E / nez.737 doors, hatches and service-access plan — locate FWD/AFT CARGO, EQUIP, ENTRY/SERVICE, E&E / nose.

ObjectifObjective

Utiliser le schéma pour situer les voyants et callouts airframe (anglais) — pas une liste plate seule.Use the diagram to locate lights and airframe callouts (English) — not a flat list alone.

Reference

Plan des portes, trappes et accès service du 737. Les callouts airframe restent en anglais. Utiliser ce schéma pour situer les voyants FWD/AFT CARGO, EQUIP, ENTRY/SERVICE et les trappes E&E / nez / service.737 doors, hatches and service-access plan. Airframe callouts stay in English. Use this diagram to locate FWD/AFT CARGO, EQUIP, ENTRY/SERVICE lights and E&E / nose / service doors.

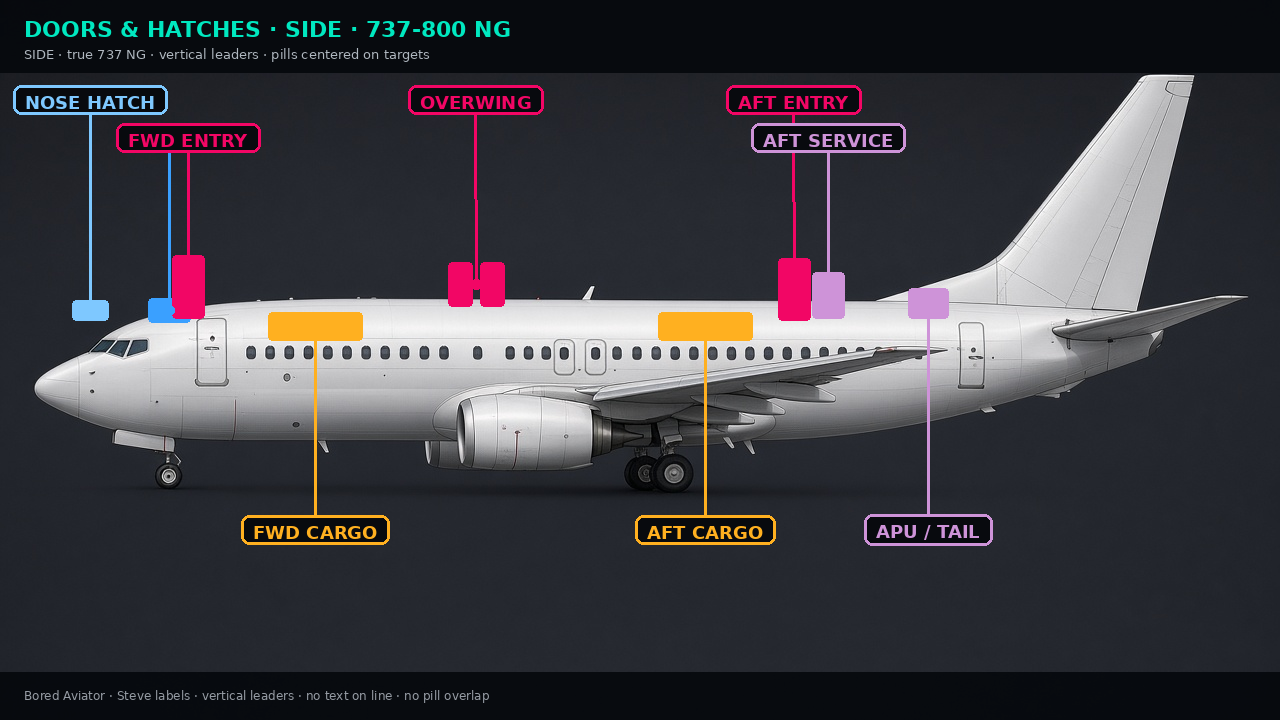

737-800 NG doors and hatches side view — Vue latérale 737, nez à gauche : portes cabine en rose, cargo en ambre, accès EQUIP en bleu et service/APU en violet.737 side view, nose left: cabin doors pink, cargo amber, EQUIP access blue, and service/APU violet.

Callouts airframe (anglais)Airframe callouts (English)

Cabine / issuesCabin / exits

Forward / Aft Entry Door · Forward / Aft Galley Service Door
Mid Exit Door (900ER) · Overwing exits

Cargo / équipementCargo / equipment

Forward / Aft Cargo Compartment Door · Main Deck Cargo Door (BCF)
Electronic Equipment Compartment External Access Door
Lower Nose Compartment Access Door · Nose Landing Gear Doors

Service / systèmesService / systems

Water / Waste Service Door · Outflow Valve Door
APU Access / Inlet / Tail Cone Access Door
External Power Receptacle Door · Ground Pneumatic Connection Door (to connect ASU) · Ground Service Air Conditioning Access Door (to connect pre-conditioned air)
Pressure Fueling Station · Defueling Valve · Center Tank Sump
Negative Pressure Relief Door · Brake Accumulator Access · Air Conditioning Access

Limites vent portes Entry/Service/Cargo : ouverture/fermeture jusqu’à 40 kts ; Entry/Service latched open jusqu’à 65 kts — voir ENTRY DOOR / SERVICE DOOR.Entry/Service/Cargo wind limits: open/close up to 40 kts; Entry/Service latched open up to 65 kts — see ENTRY DOOR / SERVICE DOOR.
